Setup CI - Auto-Validate PRs/MRs

Automatically validate your data changes in every pull request or merge request using Recce Cloud. Catch data issues before they reach production, with validation results right in your PR/MR.

What This Does

Automated PR/MR Validation prevents data regressions before merge:

  • Triggers: PR/MR opened or updated against main
  • Action: Auto-update Recce session for validation
  • Benefit: Automated data validation and comparison visible in your PR/MR

Prerequisites

Before setting up CI, ensure you have:

  • ✅ Recce Cloud account - Start free trial
  • ✅ Repository connected to Recce Cloud - Git integration guide
  • ✅ dbt artifacts - Know how to generate manifest.json and catalog.json from your dbt project
  • ✅ CD configured - Setup CD to establish baseline for comparisons

Setup

GitHub Actions

Create .github/workflows/ci-workflow.yml:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
name: Validate PR Changes

on:
  pull_request:
    branches: ["main"]

concurrency:
  group: ${{ github.workflow }}-${{ github.ref }}
  cancel-in-progress: true

jobs:
  validate-changes:
    runs-on: ubuntu-latest
    timeout-minutes: 45
    permissions:
      contents: read
      pull-requests: write

    steps:
      - name: Checkout PR branch
        uses: actions/checkout@v4
        with:
          fetch-depth: 2

      - name: Setup Python
        uses: actions/setup-python@v5
        with:
          python-version: "3.11"
          cache: "pip"

      - name: Install dependencies
        run: pip install -r requirements.txt

      - name: Build current branch artifacts
        run: |
          dbt deps
          # Optional: dbt build --target ci
          dbt docs generate --target ci
        env:
          DBT_ENV_SECRET_KEY: ${{ secrets.DBT_ENV_SECRET_KEY }}

      - name: Upload to Recce Cloud
        run: |
          pip install recce-cloud
          recce-cloud upload
        env:
          GITHUB_TOKEN: ${{ secrets.GITHUB_TOKEN }}

Key points:

  • GITHUB_TOKEN is passed explicitly for Recce Cloud authentication
  • recce-cloud upload (without --type) auto-detects this is a PR session
  • dbt docs generate creates the required manifest.json and catalog.json

GitLab CI/CD

Add to your .gitlab-ci.yml:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
stages:
  - build
  - upload

variables:
  DBT_TARGET: "ci"

# MR build - runs on merge requests
dbt-build:
  stage: build
  image: python:3.11-slim
  script:
    - pip install -r requirements.txt
    - dbt deps
    # Optional: dbt build --target $DBT_TARGET
    - dbt docs generate --target $DBT_TARGET
  artifacts:
    paths:
      - target/
    expire_in: 1 week
  rules:
    - if: $CI_PIPELINE_SOURCE == "merge_request_event"

# Upload to Recce Cloud
recce-upload:
  stage: upload
  image: python:3.11-slim
  script:
    - pip install recce-cloud
    - recce-cloud upload
  dependencies:
    - dbt-build
  rules:
    - if: $CI_PIPELINE_SOURCE == "merge_request_event"

Key points:

  • Authentication is automatic via CI_JOB_TOKEN
  • recce-cloud upload (without --type) auto-detects this is an MR session
  • dbt docs generate creates the required manifest.json and catalog.json

Platform Comparison

Aspect GitHub Actions GitLab CI/CD
Config file .github/workflows/ci-workflow.yml .gitlab-ci.yml
Trigger on: pull_request: if: $CI_PIPELINE_SOURCE == "merge_request_event"
Authentication Explicit (GITHUB_TOKEN) Automatic (CI_JOB_TOKEN)
Session type Auto-detected from PR context Auto-detected from MR context
Artifact passing Not needed (single job) Use artifacts: + dependencies:

Verification

Test with a PR/MR

GitHub:

  1. Create a test PR with small data changes
  2. Check Actions tab for CI workflow execution
  3. Verify validation runs successfully

GitLab:

  1. Create a test MR with small data changes
  2. Check CI/CD → Pipelines for workflow execution
  3. Verify validation runs successfully

Verify Success

Look for these indicators:

  • ✅ Workflow/Pipeline completes without errors
  • ✅ PR/MR session created in Recce Cloud
  • ✅ Session URL appears in workflow/pipeline output

GitHub:

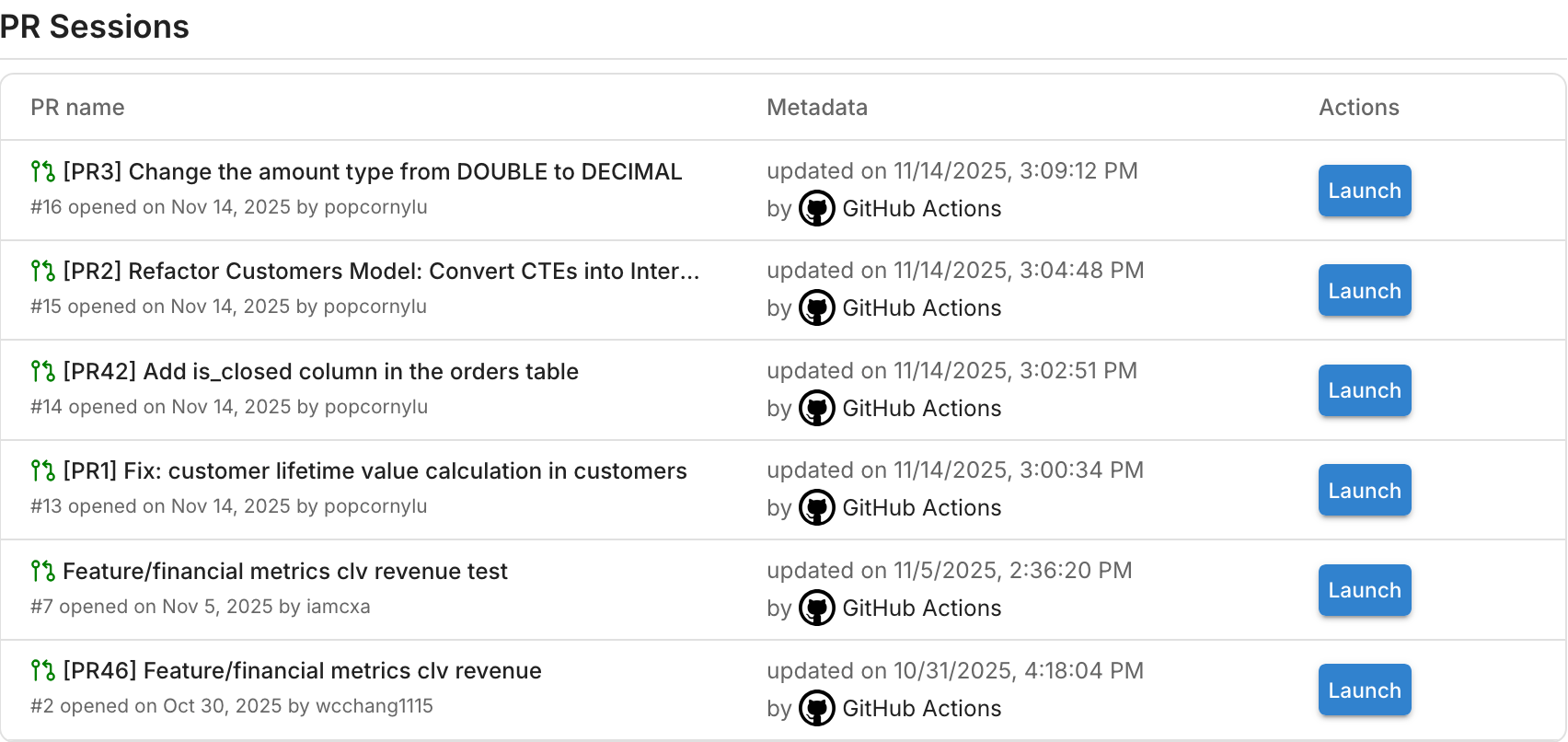

Recce Cloud showing PR validation session

GitLab:

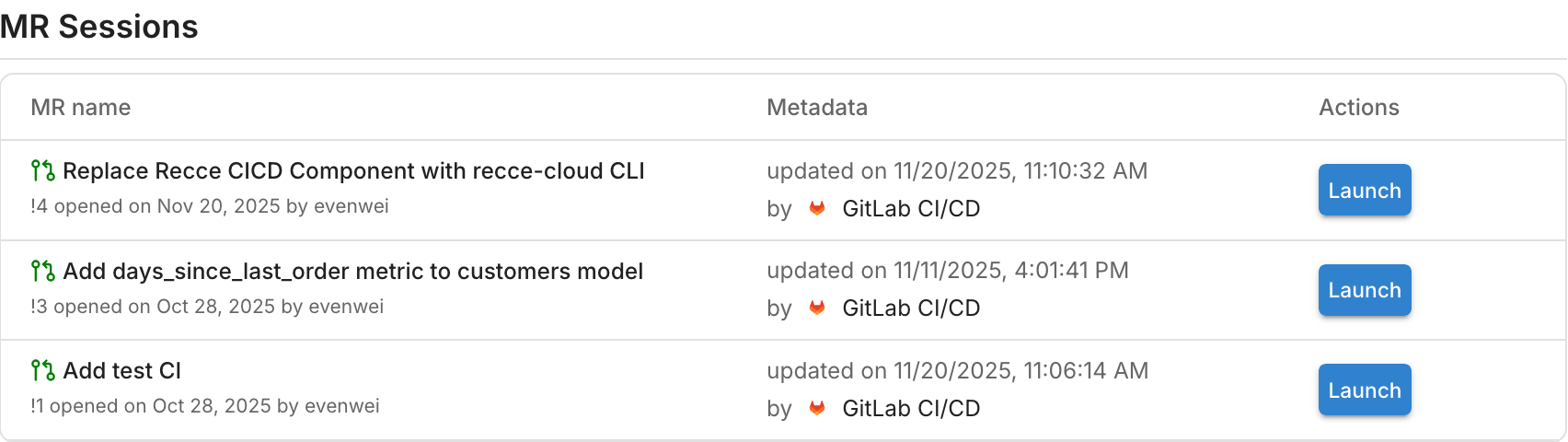

Recce Cloud showing MR validation session

Expected Output

When the upload succeeds, you'll see output like this in your workflow logs:

GitHub:

─────────────────────────── CI Environment Detection ───────────────────────────
Platform: github-actions
PR Number: 42
PR URL: https://github.com/your-org/your-repo/pull/42
Session Type: cr
Commit SHA: abc123de...
Base Branch: main
Source Branch: feature/your-feature
Repository: your-org/your-repo
Info: Using GITHUB_TOKEN for platform-specific authentication
────────────────────────── Creating/touching session ───────────────────────────
Session ID: f8b0f7ca-ea59-411d-abd8-88b80b9f87ad
Uploading manifest from path "target/manifest.json"
Uploading catalog from path "target/catalog.json"
Notifying upload completion...
──────────────────────────── Uploaded Successfully ─────────────────────────────
Uploaded dbt artifacts to Recce Cloud for session ID "f8b0f7ca-ea59-411d-abd8-88b80b9f87ad"
Artifacts from: "/home/runner/work/your-repo/your-repo/target"
Change request: https://github.com/your-org/your-repo/pull/42

GitLab:

─────────────────────────── CI Environment Detection ───────────────────────────
Platform: gitlab-ci
MR Number: 4
MR URL: https://gitlab.com/your-org/your-project/-/merge_requests/4
Session Type: cr
Commit SHA: c928e3d5...
Base Branch: main
Source Branch: feature/your-feature
Repository: your-org/your-project
Info: Using CI_JOB_TOKEN for platform-specific authentication
────────────────────────── Creating/touching session ───────────────────────────
Session ID: f8b0f7ca-ea59-411d-abd8-88b80b9f87ad
Uploading manifest from path "target/manifest.json"
Uploading catalog from path "target/catalog.json"
Notifying upload completion...
──────────────────────────── Uploaded Successfully ─────────────────────────────
Uploaded dbt artifacts to Recce Cloud for session ID "f8b0f7ca-ea59-411d-abd8-88b80b9f87ad"
Artifacts from: "/builds/your-org/your-project/target"
Change request: https://gitlab.com/your-org/your-project/-/merge_requests/4

Review PR/MR Session

To analyze the changes in detail:

  1. Go to your Recce Cloud
  2. Find the PR/MR session that was created
  3. Launch Recce instance to explore data differences

Advanced Options

Custom Artifact Path

If your dbt artifacts are in a non-standard location:

recce-cloud upload --target-path custom-target

Dry Run Testing

Test your configuration without actually uploading:

recce-cloud upload --dry-run

Troubleshooting

If CI is not working, the issue is likely in your CD setup. Most problems are shared between CI and CD:

Common issues:

  • Missing dbt artifacts
  • Authentication failures
  • Upload errors
  • Sessions not appearing

→ See the Setup CD Troubleshooting section for detailed solutions.

CI-specific tip: If CD works but CI doesn't, verify:

  1. PR/MR trigger conditions in your workflow configuration
  2. The PR/MR is targeting the correct base branch (usually main)
  3. You're looking at PR/MR sessions in Recce Cloud (not production sessions)
